Pumps - Crompton Greaves
|
|
|
|
|
|

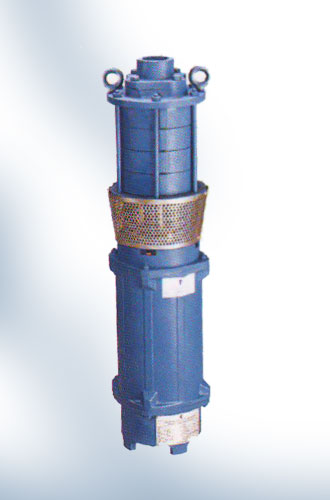

Vertical Open well Submersible Monoset Pumps (3 Phase)
Features:
- (1) Easy Maintenance.
- (2) Wide Voltage Range - 250-415 Volts.
- (3) Robust Construction.
Application:
- (1) Farm Irrigation.
- (2) Drip Irrigation.
- (3) Drinking Water Supplies.
- (4) Sprinkler Irrigation
Standard Specification:
- (1) Range : 3.0 HP to 10.0 Hp (2.2 KW to 7.5 KW)
- (2) Supply : 415 V for 3 Phase
- (3) Pipe size (mm) : 50x50, 65x65
- (4) Total Head: Up to 114 Meters.
- (5) Capacity : Up to 700 LPM
- (6) Liquid : Clear Water
- (7) Rotation: Clockwise as viewed from motor end.
Electric Motor:
- (1) Thrust Bearing : Stainless Steel
- (2) Motor Body : Cast Iron
- (3) Bush : Bronze
- (4) Motor Shaft : Stainless Steel
|
|
|
 |
|
|
|
|
|
|
|
|
|

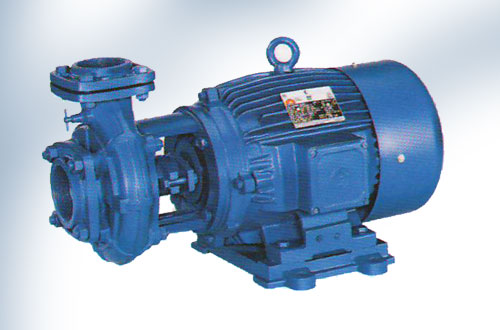

Centrifugal Monoset Pumps ( 3 Phase)
Features:
- (1) Monoset Construction.
- (2) Wide Voltage Band.
- (3) High Efficiency – Less Power Consumption.
- (4) Stainless Steel Sleeve – Less Shaft Wear.
- (5) Trouble Free Operation – Low Maintenance.
- (6) Compact Size – Less Space
- (7) Robust Design Suitable for Adverse Conditions.
- (8) Sealing – Gland Packing.
Application
- (1) Irrigation.
- (2) Lift Irrigation.
- (3) Hotels, Dairies, Hospitals.
- (4) Ornamental Fountains.
- (5) Sprinkler and Drip Irrigation.
- (6) Construction Sites.
- (7) Garden, Small Farms
- (8) Industries
Standard Specifications:
- (1) Range : 0.75 KW to 22.0 KW (1.ohp to 30.0 Hp)
- (2) Supply : 415 V, 50 Hz, 3 phase AC
- (3) Pipe Size : 40x32 mm to 150x150mm
- (4) Total head: Up to 75 Meters.
- (5) Capacity: Up to 4246 LPM.
- (6) Liquid: Clear Water.
- (7) Rotations: Clockwise as viewed from motor end.
|
|
|
|
|
|
|
|
|
|
|
|
|

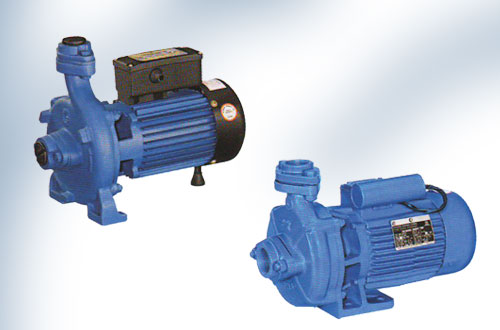

Centrifugal Monoset Pumps ( 1 Phase)
Features:
- (1) Mono set Construction with High Quality Mechanical Seal.
- (2) Totally Enclosed Fan Cooled Motor for Better Safety.
- (3) Unique Motor Design with Capacitor Start & Run – Eliminating Centrifugal Switch.
Standard Specifications:
- (1) Range: 0.37KW to 1.5 KW (0.5 TO 2.0 HP)
- (2) Supply: 225 Volts, 50 Hz, 1 Phase AC.
- (3) Pipe size: 25x25 mm to 80x80mm.
- (4) Total Head: Up to 33 Meters.
- (5) Capacity: Up to 930 LPM.
- (6) Liquid: Clear Water.
- (7) Rotation: Clockwise as viewed from motor end.
Application:
- (1) Bungalows, Building, Flats.
- (2) Car washing & Booster Application.
- (3) Auxiliary Equipment for Machinery.
- (4) Hotels, Garage, Laundries.
- (5) Small Farms & Lawn Sprinklers.
- (6) Ornamentals Fountains.
|
|
|
|
|
|
|
|
|
|
|
|
|
Centrifugal Monoset Pumps Fire Fighting (3 Phase)
Features:
- (1) Wide Range to Suit a Variety of Requirements.
- (2) High Efficiency – Less Power Consumption.
- (3) Trouble Free Operations - Low Maintenance.
- (4) Compact Size – Less Space.
- (5) Sealing – Mechanical Seal for MI Series, Gland Packing for FF Series.
Standard Specifications:
- (1) Range : 1.5 KW to 22KW (0.2 HP to 30.0 HP)
- (2) Supply: 415V+6%, - 15 %, 50Hz, 3 Phases.
- (3) Pipe Size: 50x40 mm to 100x100 mm.
- (4) Total Head: Up to 69 Meters.
- (5) Capacity: Up to 2140 LPM.
- (6) Liquid: Clear Water.
- (7) Rotations: Clockwise as viewed from motor end.
Applications:
- (1) Cooling Towers.
- (2) Office & Shopping Mall Cooling Systems
- (3) Constructions Sites, Hotels, dairies, Hospitals & Industries.
|
|
|
|
|
|
|
|
|
|
|
|
|

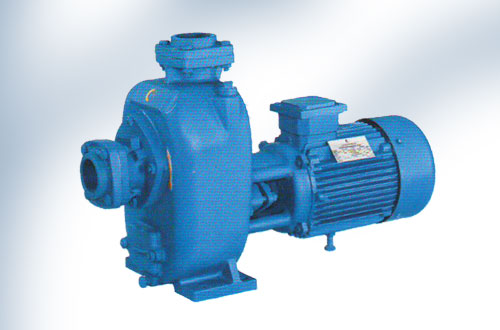

Dewatering Pumps
Features:
- (1) Self Priming up to 80 Meters at Mean Sea Level.
- (2) Construction – Bare Pump/ Mono set/ Motor Coupled
- (3) Shaft Sealing – Gland Packing / Mechanical Seal
- (4) Totally Enclosed Fan Cooled Motor Suitable for Wide Voltage
- (5) Non clog Type Impeller – To Handle Liquid with Solid Particles
- (6) Easy Maintenance with Inter chargeable Parts.
Applications:
(a) Industrial :
- (1) Ash Water in Thermal Power Plants
- (2) Transfer of Treated / Raw Water
- (3) Waste liquid in Marble Factories
- (4) Effluent Treatment Plants
(b) Residential :
- (1) Civil Construction Sites
- (2) Swimming Pool Filtration
- (3) Dewatering of Basement Water & Trenches
- (c) Marine
- (1) Pumping Water From Docks, Ports
|
|
|
|
|
|
|
|
|
|
|
|
|

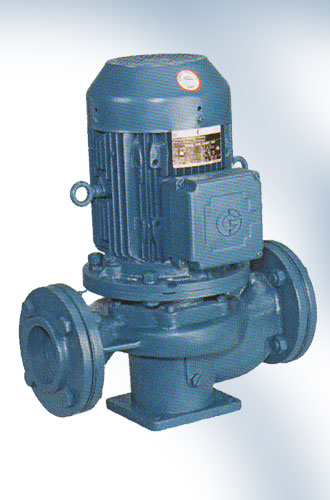

Vertical Inline Pumps (3 Phase)
Features
- (1) Vertical in line Design – Minimum Space Requirement, Easy Installation.
- (2) Back pull out design.
- (3) Flange Mounted Motor – Easy Maintenance.
- (4) Volute & Adaptor – Fitted With Bronze Wear Ring
- (5) High Quality & Long Life Mechanical Seal.
- (6) Suitable up to 650 C water with Standard Mechanical Seal & 1100 C Water with Special Mechanical Seal.
- (7) Rust Free Bronze Impeller.
Standard Specifications
- (1) Range : 0.37 kW to 7.5 kW (0.5HP to 10.0 Hp)
- (2) Supply: 415 V, 3 Phase, 50Hz, AC.
- (3) Pipe Size: 32x32 mm to 100x100mm.
- (4) Total Head: Up to 30 Meters.
- (5) Capacity: Up to 1400 LPM.
- (6) Liquid : Clear Water
- (7) Rotations : Anti clockwise as viewed from motor end.
Application:
- (1) Open Loop & Closed Loop Water Circuits.
- (2) Water Pressure Boosting for Industrial and Sprinkler Systems.
- (3) Water Circulations for cooling Towers in Air Conditioning Plants and Cold Storage Plants.
- (4) Water Supply & Circulations for Industrial & Commercial Establishments.
- (5) Hot Water Handling Systems.
- (6) Auxiliary Equipments for Water Circulation.
- (7) Irrigation & Dewatering Systems.
|
|
|
|
|
|
|
|
|
|
|
|
