Agriculture Pumps
|
|
C.R.I. Agriculture & Residential pumpsets are the products of expertise gained from over five decades of experience, endurance and workmanship. C.R.I. Products are engineered to perfection with utmost care and stringent quality control at all stages to ensure a trouble free service. C.R.I.'s unwavering determination has made us a strong presence across the country with 4000 plus channel partners and more than 700 service centers with readily available spares.
-Borewell-Su.jpg?url=../images/criagripumps/150-mm-(6-inch)-Borewell-Su.jpg "150-mm-(6-inch)-Borewell-Su")
|
|

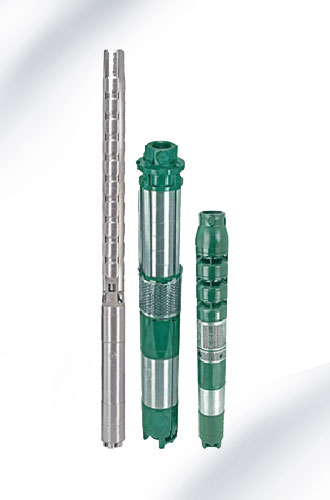

150 mm (6 inch) Borewell Submersible Pumpsets
C.R.I. 150 mm (6") Borewell Submersible pumpsets are powered by water filled, rewindable submersible motor suitable for continuous duty. The stator is wound with special water proof synthetic film insulated copper winding wires and made up of low watt loss silicon steel laminations assembled under pressure and rigidly locked in stainless steel stator shell. T-Bolt design in all motors ensures rigid construction. Specially designed high performance thrust bearings (SS with Carbon) are used to withstand axial thrust loads.
|
• Domestic
• Agricultural
• Irrigation
• Civil & Industrial water supply
• Ponds
• Gardens and mining
• Fire fighting
• Pressure boosting
|
• SS 304 grade stainless steel stage casings and impellers in radial flow series
• SS 410 impeller / Bronze impeller available in mixed flow series
• 50 feet head per stage in specific models
• Dynamically balanced rotating parts ensures minimum vibrations and longer life.
• Designed for wide voltage fluctuations
• Better efficiency and consistent performance
• Fully SS pumpsets are available
|
|
|
-Borewell-Su.jpg?url=../images/criagripumps/200-mm-(8-inch)-Borewell-Su.jpg "200 mm (8 inch) Borewell Submersible Pumps - CR & CM Series")
|
|

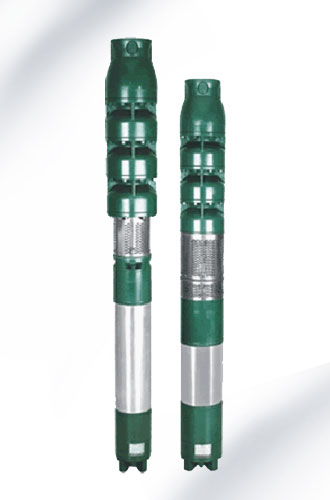

200 mm (8 inch) Borewell Submersible Pumps - CR & CM Series
C.R.I. 200 mm (8") Borewell Submersible pumpsets are powered by water filled, rewindable submersible motor which is suitable for continuous duty. The stator is wound with special waterproof synthetic film insulated copper winding wires and made up of low watt loss silicon steel laminations assembled under pressure and rigidly locked in stainless steel stator shell. Specially designed thrust bearings (SS AISI - 420 with Graphite carbon) are used to withstand axial and down thrust loads with minimum wear and tear.
|
• Agricultural
• Irrigation
• Fountains
• Civil water supply Industrial
• Rural water Supply
• Mining
• Sprinkler system
• Drip Irrigation system
|
• Designed for wide voltage fluctuations
• High operating efficiency
• Extremely tough hard wearing lubricated bushes
• Water cooled rewindable motor
• Impellers are made up of stainless steel & Bronze
• Dynamically balanced rotating parts ensures minimum vibrations and ensures longer life
• Easily dismantled and repaired
• Specially designed thrust bearing to withstand high axial thrust load
• Fully SS pumpsets are available
|
|
|
|
|

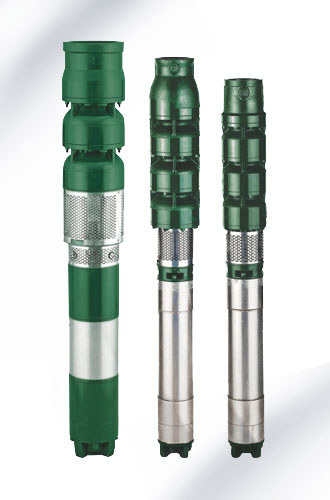

175mm (7") 200mm (8") & 250mm (10")Borewell Submersible Pumps
C.R.I. Borewell Submersible pumpsets are powered by water filled, rewindable submersible motor which is suitable for continuous duty. The stator is wound with special waterproof synthetic film insulated copper winding wires and made up of low watt loss silicon steel laminations assembled under pressure and rigidly locked in stainless steel stator shell. Specially designed thrust bearings (SS AISI – 420 with Graphite carbon) are used to withstand axial and down thrust loads with minimum wear and tear. This 175mm & 200mm submersible pumpsets are supplied with 150mm (6") motor combination and for 250mm (10") submersible pumpsets supplied with 200mm (8") motor combination only.
|
• Domestic
• Agricultural
• Irrigation
• Civil & Industrial water supply
• Ponds
• Gardens and mining
• Fire fighting
• Pressure boosting
|
• High operating efficiency
• Dynamically balanced rotating parts ensures minimum vibration and longer life
• Designed for wide voltage fluctuations
• Better efficiency and consistent performance
• Specially designed thrust bearing to withstand high axial thrust load
• Motor portion covered with corrosive resistance stainless steel (SS 304) shell
|
|
|
|
|

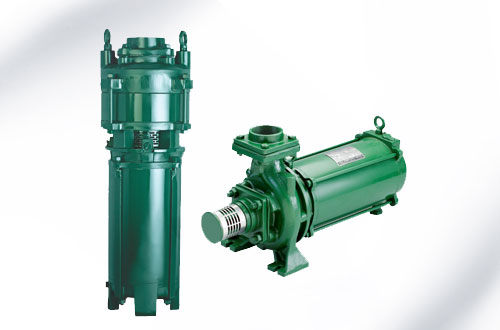

Openwell Submersible Pumpsets
C.R.I. Openwell Submersible pumpsets are ideally suitable for openwells or tanks where a wide fluctuation of water level occur. This work under water and rest at the bottom of the well. Prime mover is rewindable, water-cooled motor. Specially designed water lubricated bearings are used to withstand axial thrust loads with minimum wear and tear. The stator is wound with special water proof synthetic film insulated copper winding wires and made up of low watt loss silicon steel laminations assembled under pressure and rigidly locked. Motor sealing is made by polymers, ‘O’ rings, oil seals and sand guard to avoid ingress of well water / sand into the motor. Pressure equalizing rubber diaphragm is provided to guard the pressure and volume variation of water inside motor. Motor must be filled with clear, cold, drinking water as detailed in our operator’s manual. Three -phase motor requires an adequate motor protection control panel.
|
• Agriculture
• Domestic
• Irrigation
• Gardens
• Industrial
• Rural water supply
|
• No suction & priming problem
• Noiseless operation
• High Operating efficiency
• No need of Pump House
• Can be easily dismantled and repaired
|
|
|
|
|

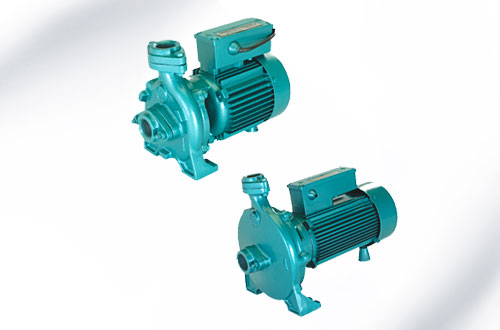

Centrifugal Monoblock Pumps
C.R.I. Centrifugal Monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor.
|
• Domestic
• Irrigation
• Farms
• Gardens
• Industry
• Civil applications
|
• High operating efficiency resulting in lower power consumption.
• Good suction lift characteristics
• Dynamically balanced rotating parts including rotor and impeller
• Balanced and rigid construction
• Back pull-out design for easy servicing & repair
• Single shaft ensures permanent & correct alignment
• Inbuilt thermal over load protector in all single-phase pumpsets (1.5kW)
|
|
|
|
|
Submersible Flat Cables
C.R.I. cables are manufactured to Indian standards that generally conforms to IS 694. High Conductivity Annealed and Bunched flexible Copper conductors are made from electrolytic bright copper twisted together and insulated with Double Layer Protection. It is made up of special grade PVC Compound which gives high resistance in insulation. Cables are sheathed with special grade of PVC Compound which makes them impervious to water,grease, oil. This makes the cables more durable with increased life and uncompromising performance at all the times irrespective of any fluctuations. These cables are sequentially marked at one-metre intervals for convenience. Available nominal sizes in square millimetres are 1.0, 1.5, 2.5, 4.0, 6.0, 10.0 & 16.0
|
|
|
|
|
|
|
|
